Brodit houder Honeywell CK67-for cable attachment-with boot

Name: Brodit houder Honeywell CK67-for cable attachment-with boot
Brand: Brodit
SKU: 714421
Price: 68.95 EUR

Artikelnummer

714421

Op voorraad

€ 68,95

Gegevens

Meer informatie

Compatibility

Instructies

Gegevens

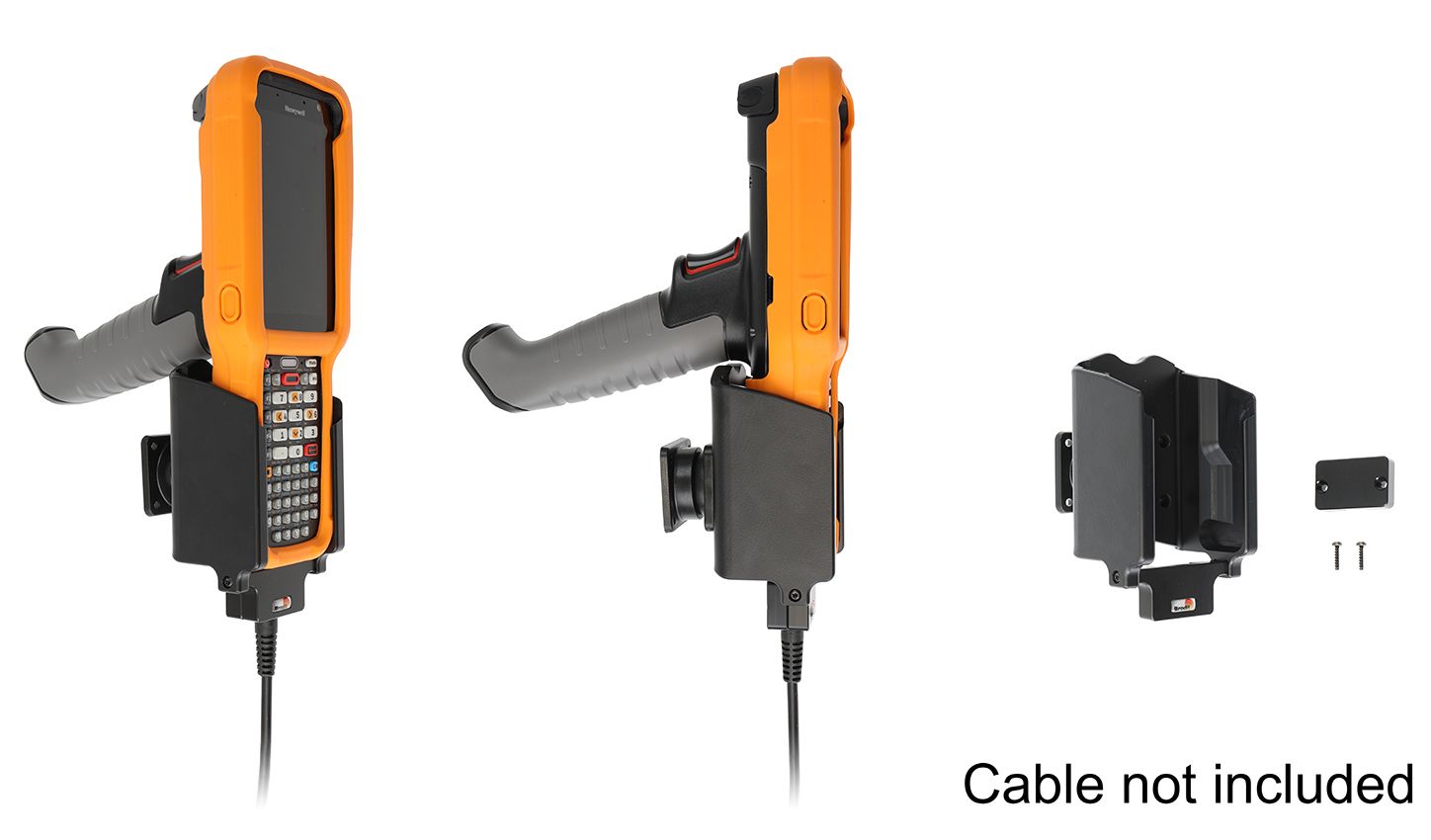

Holder with cable plug attachment. The choice for you who often connect a cable to your PDA. The cable is easy to attach to the holder, and then the cable connects to the PDA automatically when you put your PDA in the holder so you do not have to connect it manually each time. (Cable not included, Honeywell original cable 236-297-001).

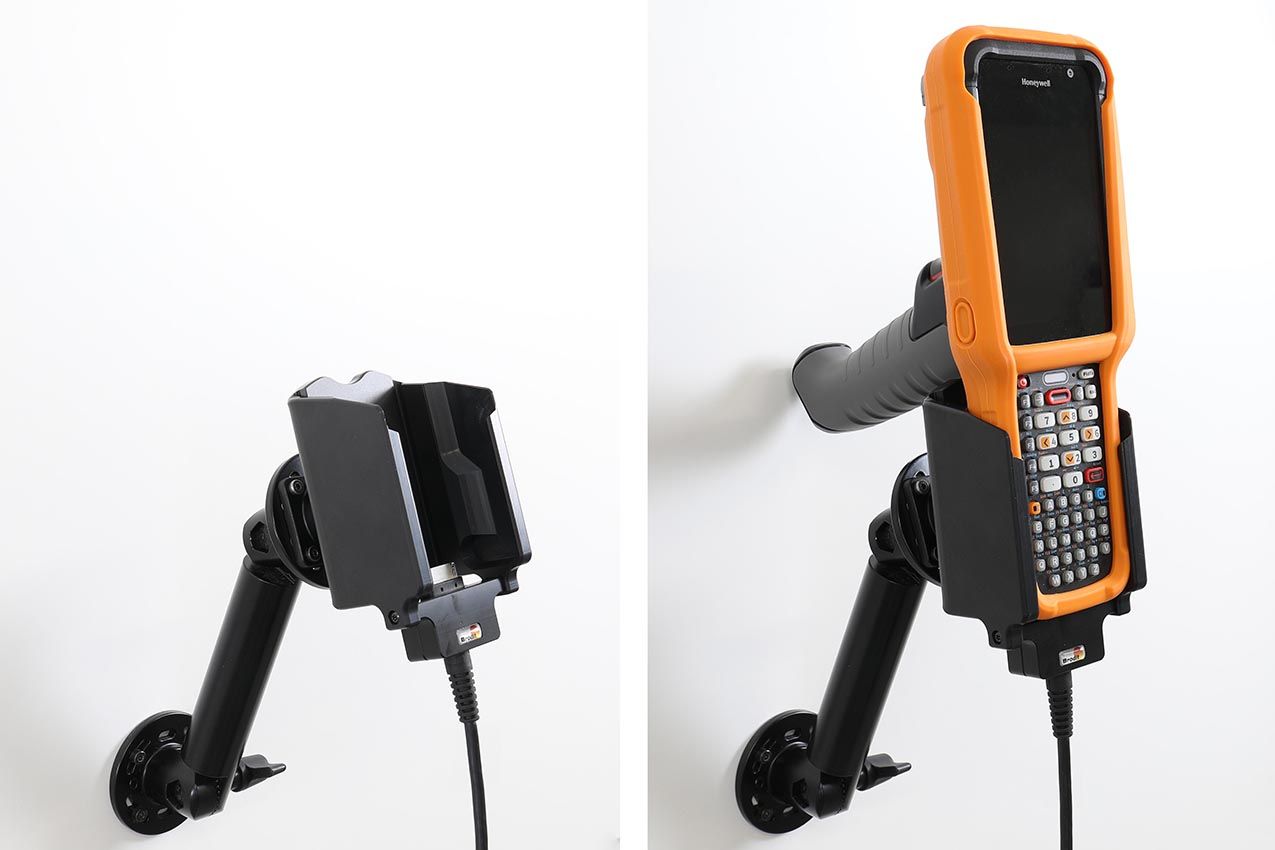

The holder is attached onto a tilt swivel, so it can be adjusted in order to avoid light reflection on the screen. Attach onto a Pedestal Mount.

Meer informatie

Meer informatie
Accessoiremerk	Brodit
Barcode	7320287144215
Adviesverkoopprijs incl. BTW	68,95
met case/skin/boot/frame ?	ja
Houder kenmerk	Toestelspecifiek
Kabel / Qi /lader type / connnector	Sig. plug, vaste kabel
Input Voltage	onbekend
Voltage (output)	onbekend
Max Amperage	onbekend
Montage standaard	AMPS
Afsluitbaar	nee
Kleur	zwart
Productinfo	Brodit houder

Compatibility

Instructies

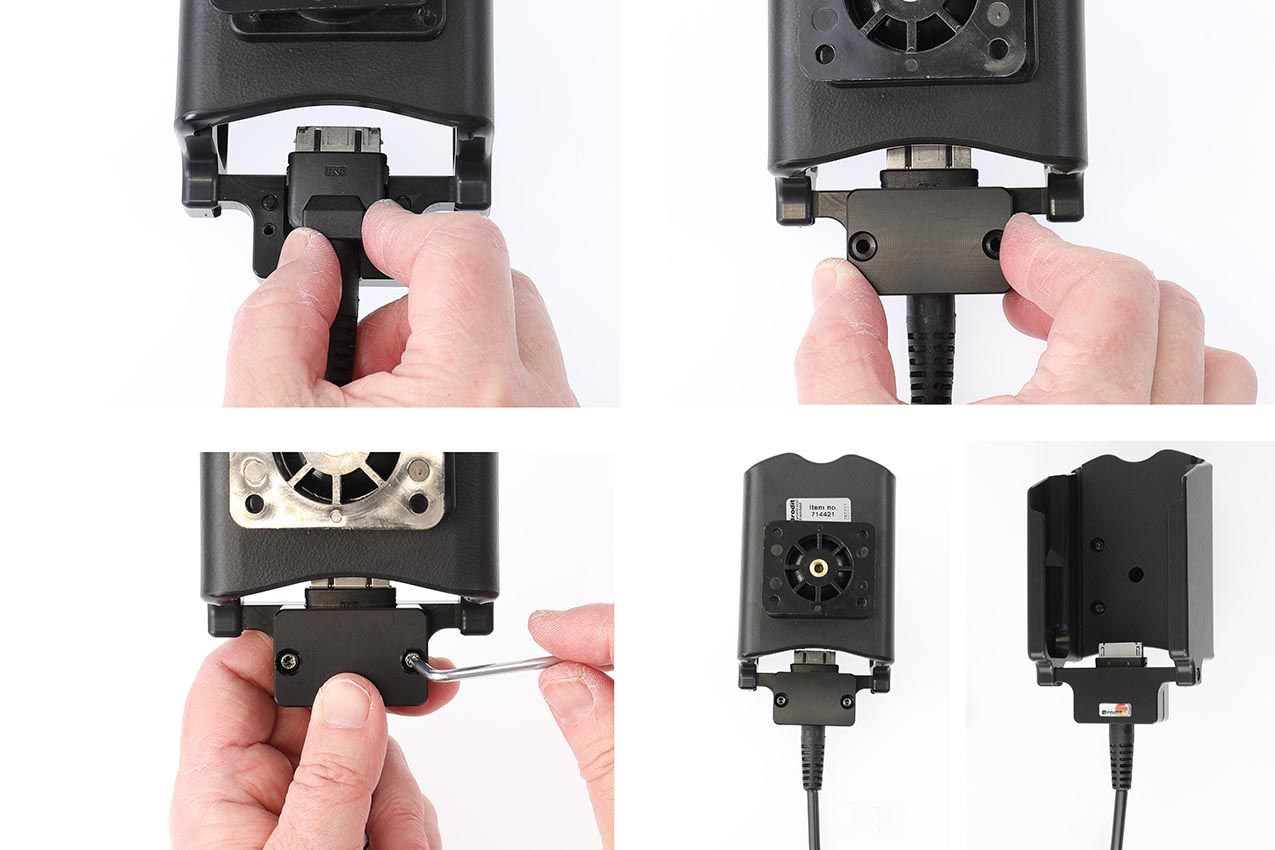

1. Installation of cable: Place the connector into the cable housing, make sure the cable is in the correct position. Place the lid over the connector. Press the parts together and flip the holder so the backside is upwards. Screw the lid into place. The cable is in place.

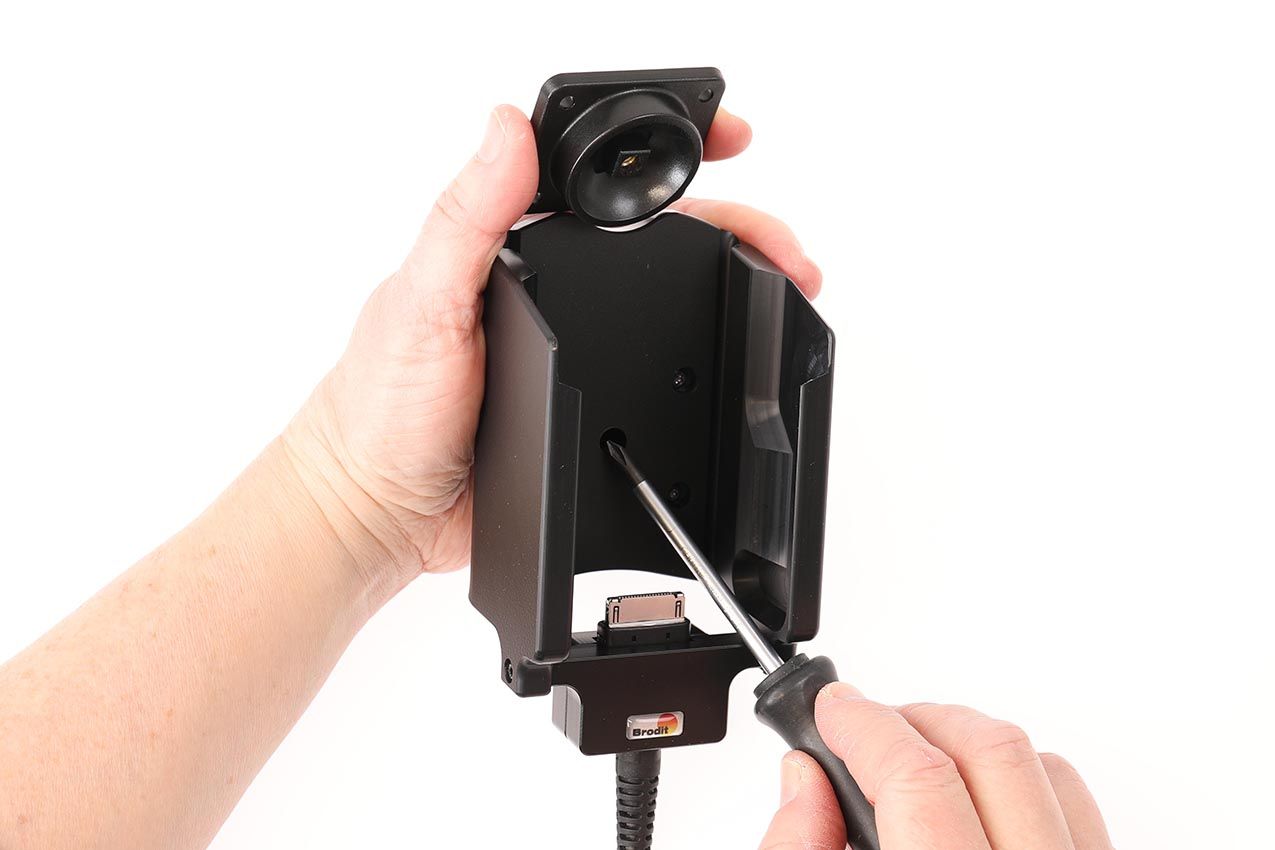

2. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate on desired position. Screw the attaching plate into place with the enclosed screws.

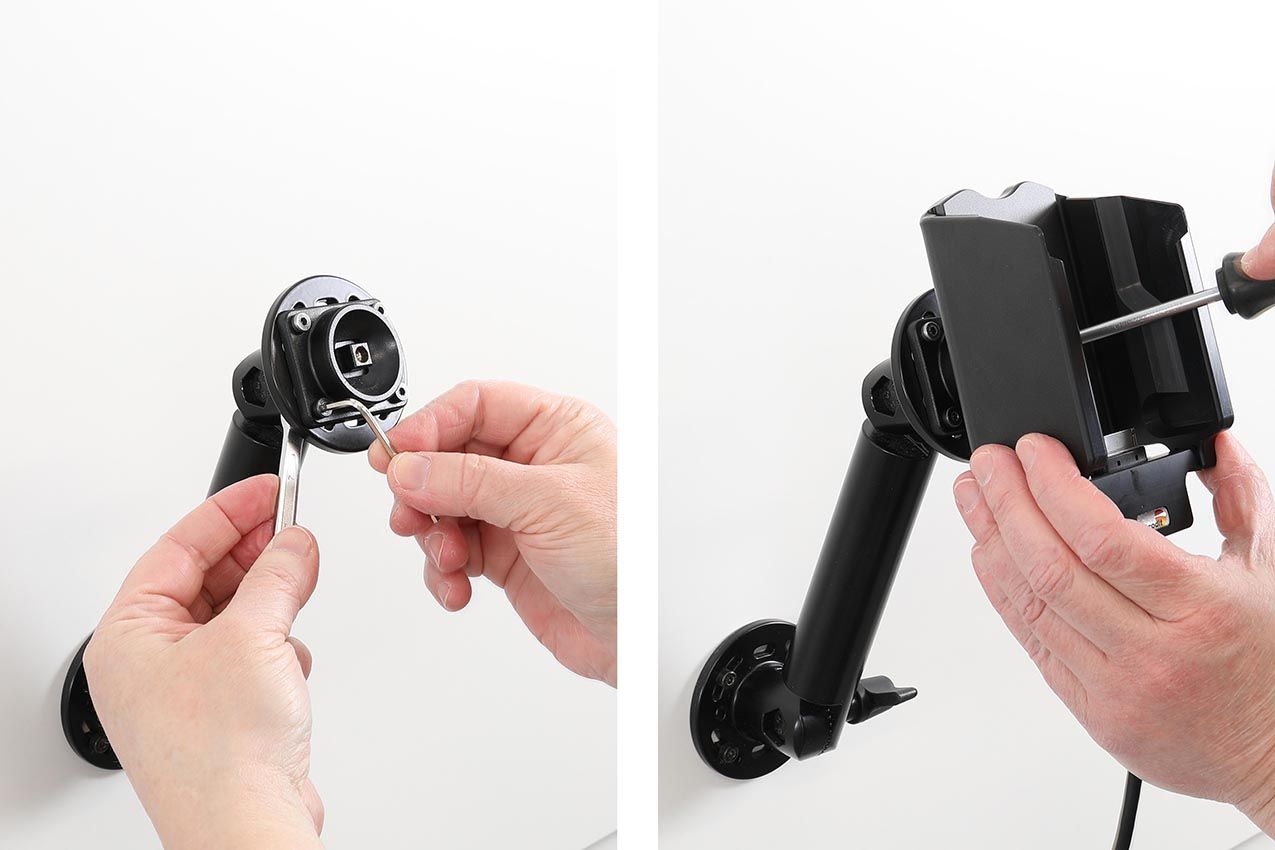

3. Place the holder over the attaching plate so the tilt swivel fits. Screw the holder onto the attaching plate.
