Brodit houder/lader Honeywell EDA10A cig.plug - 3A
Brodit houder/lader Honeywell EDA10A cig.plug - 3A
Brodit houder/lader Honeywell EDA10A cig.plug - 3A
Brodit houder/lader Honeywell EDA10A cig.plug - 3A
Brodit houder/lader Honeywell EDA10A cig.plug - 3A

Brodit houder/lader Honeywell EDA10A cig.plug - 3A

Artikelnummer
712400
Niet op voorraad
€ 184,95
-
+
Voeg toe aan bestellijst Toevoegen om te vergelijken
Gegevens

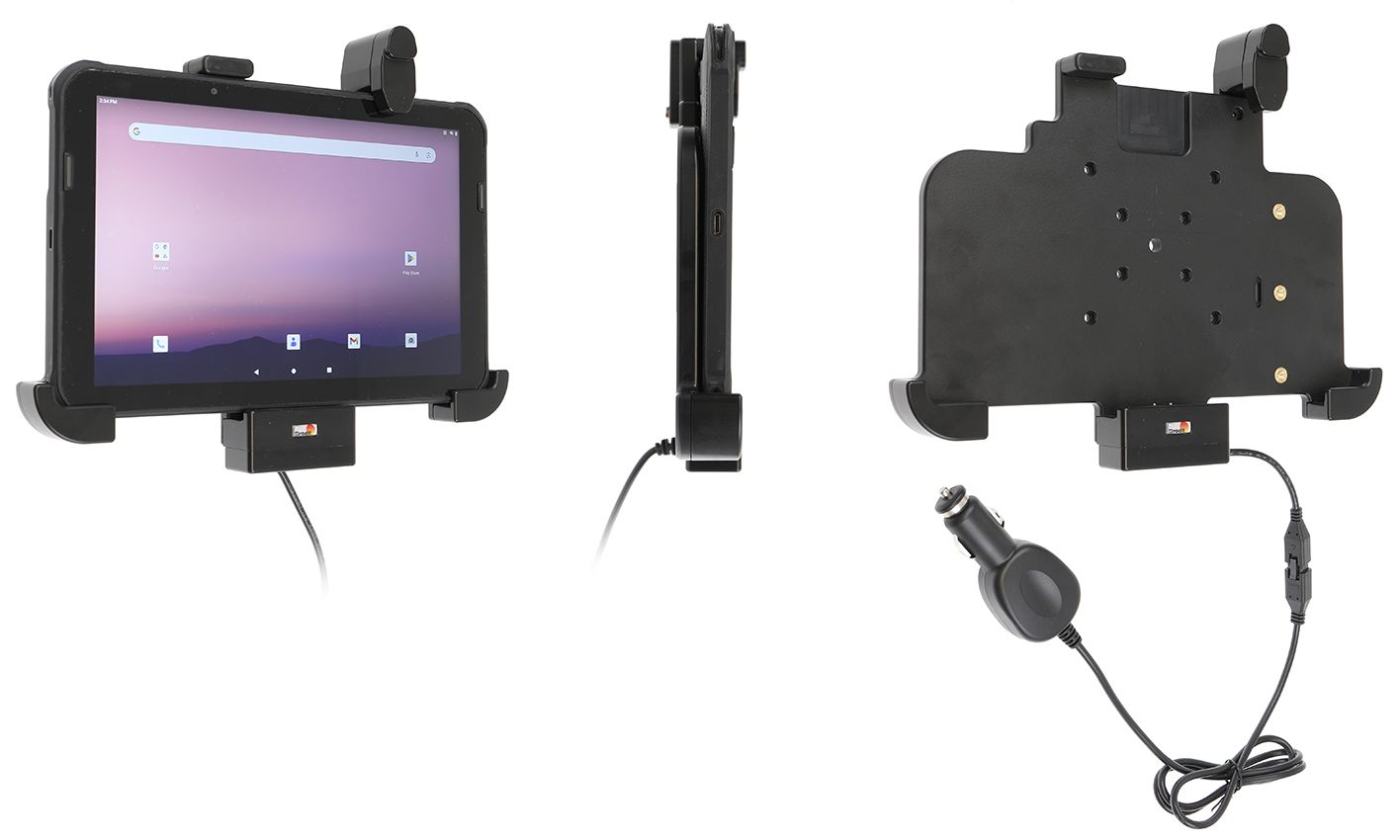

Use an active holder for your EDA10A and you will always have a freshly charged battery! The holder provides a neat and comfortable installation - safe and convenient. The holder is equipped with a cig-plug for connection to the vehicle's 12/24 Volt socket. 3A charging. Charging via pogo plug.



This holder is to be used when you want to have your EDA10A extra securely in place and still have it easy accessable.



The holder is equipped with a tilt swivel so you can easily adjust the angle for better viewing. Tilts 17° and swivels 360°. Mounting plate 42x50 mm with 4 mm AMPS-holes. Made of high grade black ABS/Acetal plastic. Made in Sweden.

Meer informatie
Meer informatie
Accessoiremerk Brodit
Barcode 7320287124002
Adviesverkoopprijs incl. BTW 184,95
met case/skin/boot/frame ? nee
Houder kenmerk Toestelspecifiek
Kabel / Qi /lader type / connnector Molex, Sig. plug, vaste installatie, piggy tail (Easy Switching)
Toestel opladen via Pogo / Pins
Input Voltage 12/24V geschikt
Voltage (output) 5V
Max Amperage 3,0 Amp
Montage standaard AMPS, VESA
Afsluitbaar ja spring stud locking
Kleur zwart
Productinfo Brodit houder
Compatibility
Instructies

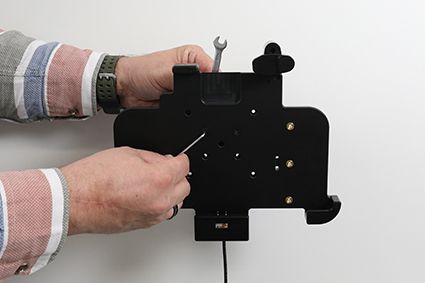

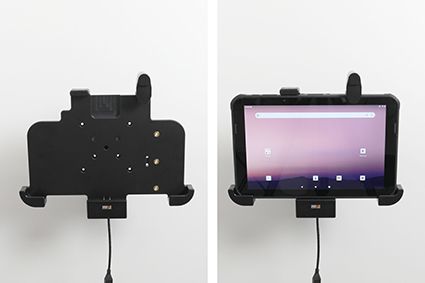

1. Loosen the screw in the center of the holder so you can remove the tilt swivel attaching plate on the back. Place the attaching plate onto the desired position. Screw the attaching plate into place with the enclosed screws. Place the holder over the attaching plate so the screw fits in the hole in the tilt swivel. Tighten the screw until the holder is firmly in place, but still can be adjusted.

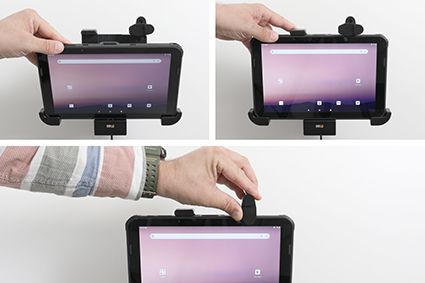

2. To place the device in the holder: Press the spring stud locking upward. Place the lower part of the device in the holder, then flip/press the upper part forwards so it snaps into place in the holder. Press the spring stud locking downward.

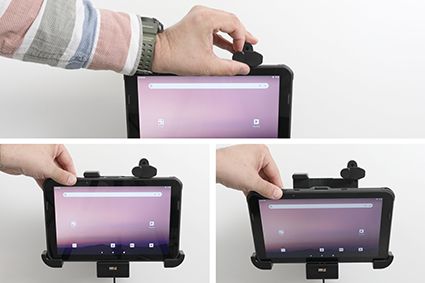

3. To remove the device from the holder: Press the spring stud locking upward. Press upwards on the upper part of the holder, in the same time pull the upper part of the device out from the holder and then lift the device up and out from the holder.
4. The holder is in place.
